voice INTER connect GmbH

vicCOM 2

vicCOM 2

Artnr.: 1-0007-00-21-01

99 in stock

99,00 EUR
99,00 EUR
Sale Sold out
Shipping calculated at checkout.

--> bulk discount for corporate clients

Software version

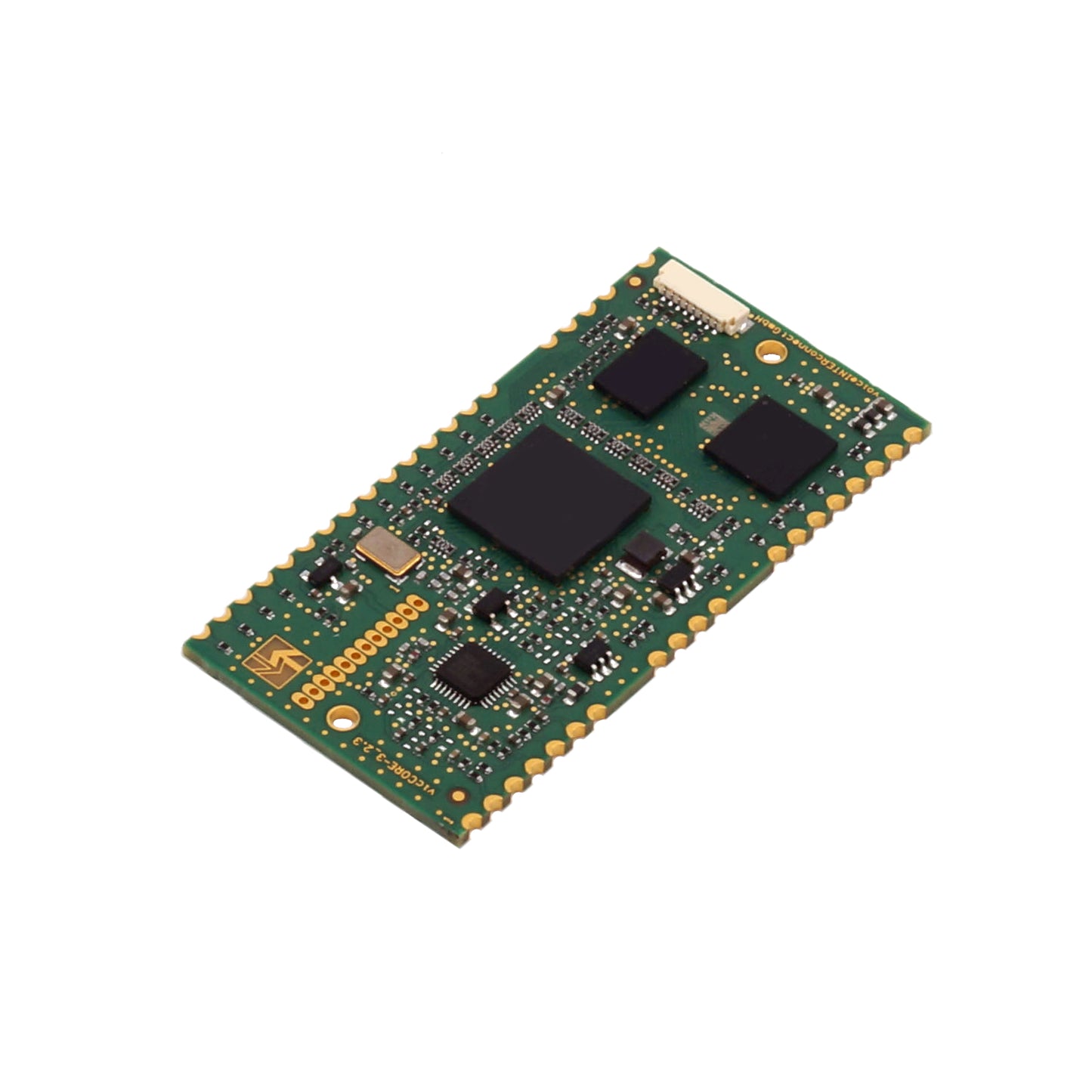

Audio processing module for hands-free calling

The small vicCOM 2 audio processing modules can be integrated as components into customer-specific layouts or into existing devices. They include signal processing software and analog audio connectors.

Product features

  • Audio processing module for hands-free calling
  • PCB with edge contacts
  • Acoustic Echo Cancellation (AEC)
  • Noise reduction (NR)
  • Intelligent voice scale
  • Feedback suppression between the microphone of the near speaker and the loudspeaker of the far speaker
  • Signal conditioning for microphone and loudspeaker signals
  • Automatic adjustment of speaker volume to ambient noise level
  • Use and management of different parameter sets
  • Parameters can be adjusted during operation
  • HD audio
  • Playing and managing audio files
  • Software and parameters can be updated

Version information

  • v2.2.x: for existing customers for compatibility
  • v2.3.x: for new customers with the latest features

For more detailed information about version differences, see the documentation on the website .

Technical data

Supply voltage 3.3 VDC
Power consumption
 approx. 40 mA (max. 90 mA)
Inputs/Outputs
 39 edge contacts, 12-pin. Bridge line
Audio level
 0 dBV (=1 V RMS)
microphone amplifier
 -12 dB ... + 55 dB
memory
 8 MB (approx. 24 sec ringtones)
SDRAM
 16 MB
Operating temperature -40 °C ... + 85 °C
Dimensions (L x W x H) 60 mm x 30 mm x 4 mm
Design
 SoC module, single-sided assembly
Weight approx. 10 g


Scope of delivery

  • 1 x vicCOM 2

Documents

website

View full details
