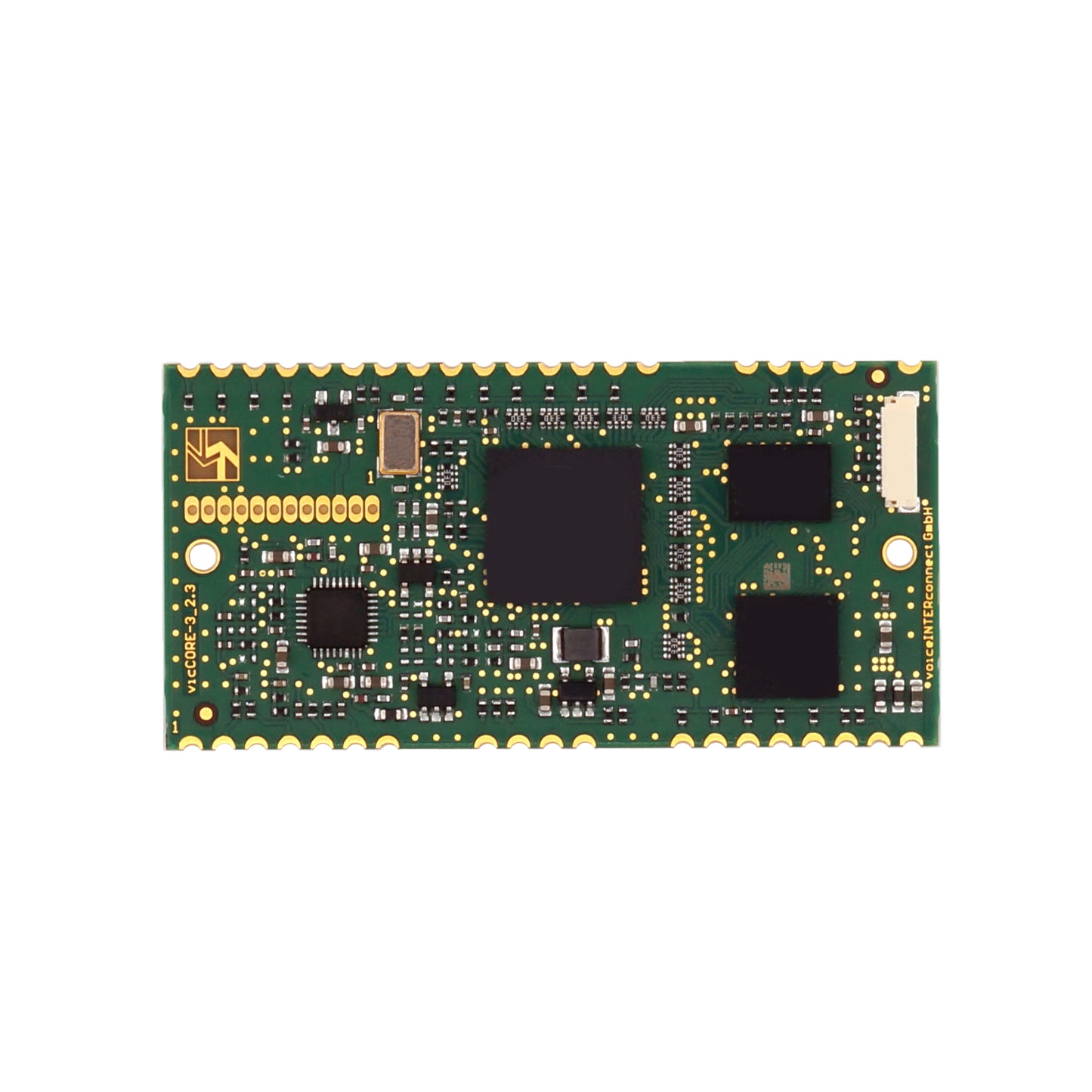

vicCONTROL go stamp

"vicCONTROL go stamp" is a compact hardware module for implementing individually configurable voice control.

Operation is purely local, requiring no internet connection. This keeps your voice commands and programmed actions protected and tamper-proof.

The module can be operated either independently with individual hardware integration in custom applications or with the carrier board of the "vicCONTROL go kit." This board contains extended hardware features such as a larger number of inputs and outputs, switching outputs, an audio amplifier, etc.

The learned voice commands control various inputs and outputs of the system; there is also a microphone connection and an audio out connection on board.

Using the development software included on the "vicCONTROL go stick" (not included), you can learn voice commands and link them to various functions. For example, after the command "Extend awning," the system can first check one of the signal inputs to see if it's too windy. If it's too windy, it can provide feedback via the audio output: "Opening not possible, wind too strong." If the wind speed is below the warning threshold, one of the outputs is activated, which controls the awning motor via an actuator/relay.

A self-definable "wake word" is used for activation, similar to those used in other voice control systems. Additionally, you can specify when certain commands can be issued. For example, you can have security functions or access controls activated only at specific times.

Information about the entered commands can be output via a UART interface, so that, for example, external microcontroller applications can be controlled directly.

Product features

• Compact SoC module for building real-time voice control
• Connection via 39 contacts for direct soldering or connector strips
• Purely local stand-alone operation – no internet or network connection required
• Speaker-independent command recognition with activation phrase
• PC development software with graphical configuration tool available - no programming knowledge required
• Control module vicCONTROL go stamp with:
• 6 inputs and outputs
• Line Out
• Serial port (UART)
• Direct microphone connection possible
• Operation via hands-free or headset
• Any linking of inputs and outputs via voice commands
• Robust speech recognition even in background noise
• Acoustic feedback via signals or voice output
• 30 languages ​​available
• Extensive configuration options such as time control, one-shot mode, UART commands

Scope of delivery

• SoC module for voice control

• Voice control application vicCONTROL go

Please note:

Requires either a vicCONTROL go kit or a vicCONTROL go stick to change the preconfigured settings/voice recognition.
