vicCONTROL go kit

The "vicCONTROL go kit" is a complete development kit for creating a customizable voice control system that can be used universally. The required PC development software is already included in the kit.

Operation is purely offline, requiring no internet connection. This keeps your voice commands and programmed actions protected and tamper-proof.

The learned voice commands control various inputs and outputs of the system; there is also an audio amplifier and an audio in/out connection on board.

Using the development software, voice commands can be learned and linked to various functions. For example, after the command "Extend awning," the system can first check one of the signal inputs to see if it's too windy. If it's too windy, it can provide feedback via the loudspeaker output: "Opening not possible, wind too strong." If the wind speed is below the warning threshold, one of the 10 outputs is activated, which controls the awning motor via an actuator.

A self-definable "wake word" is used for activation, similar to those used in other voice control systems. Additionally, you can specify when certain commands can be issued. For example, you can have security functions or access controls activated only at specific times.

Information about the entered commands can be output via a USB/UART interface, allowing, for example, external microcontroller applications to be controlled directly.

Product features

• Complete development kit for building a real-time voice control system
• Purely local stand-alone operation – no internet or network connection required
• Speaker-independent command recognition with activation phrase
• PC development software with graphical configuration tool included - no programming knowledge required

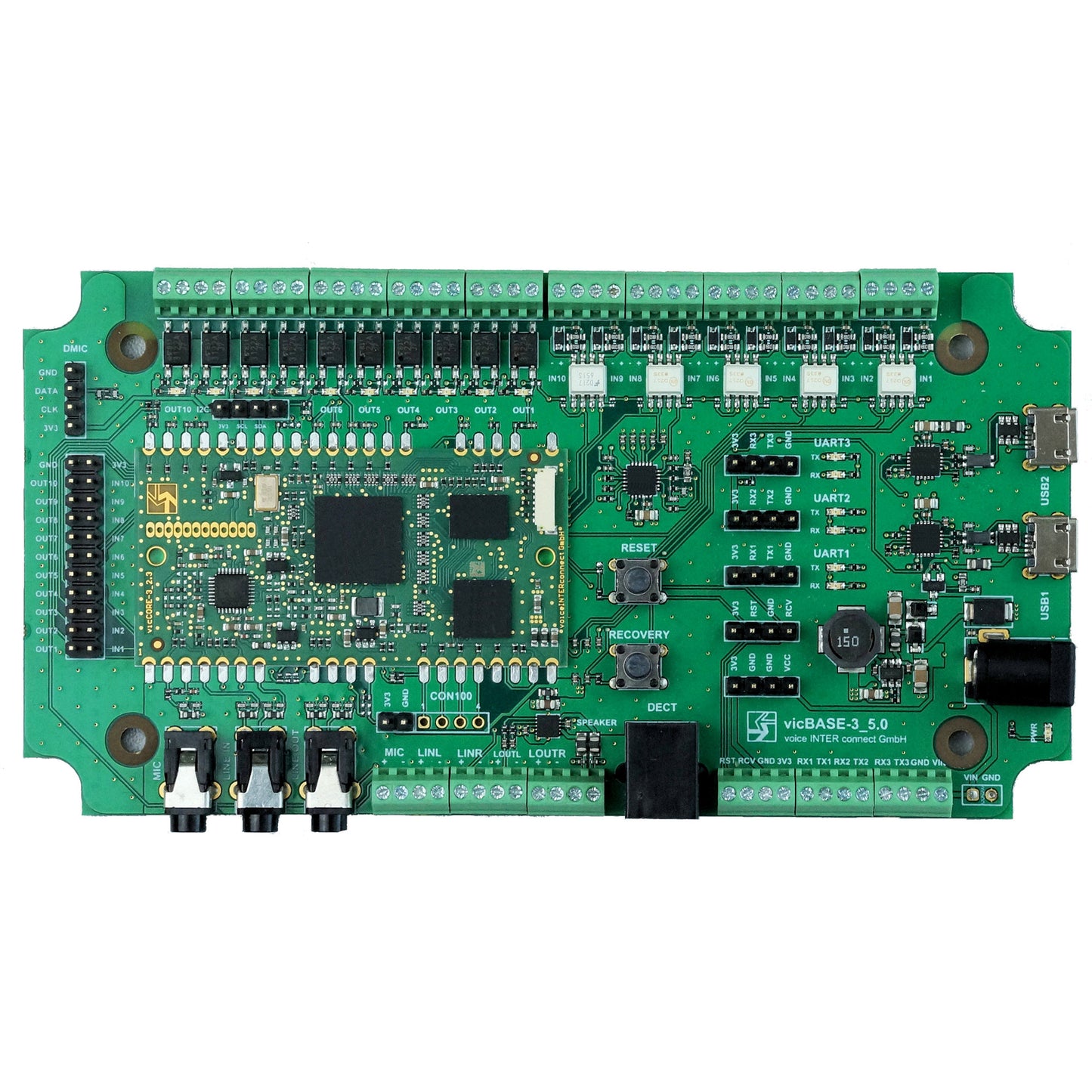

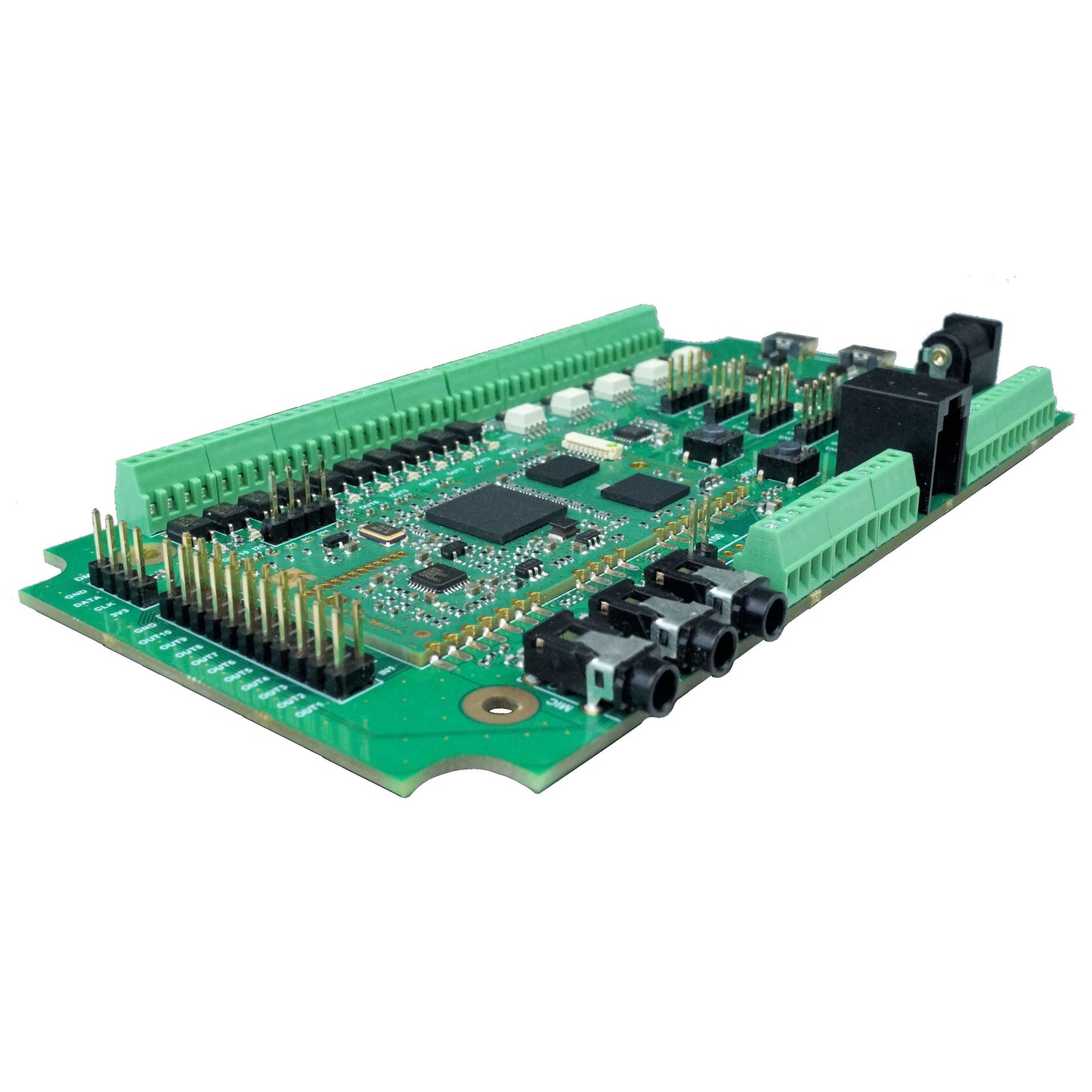

• Carrier board for the control module vicCONTROL go stamp with:
• 10 digital outputs, galvanically isolated
• 10 digital inputs, galvanically isolated
• Audio amplifier, 1 W
• Line In/Out
• Serial port with Micro-USB or alternatively UART
• Direct microphone connection possible
• Operation via hands-free or headset
• Any linking of inputs and outputs via voice commands
• Robust speech recognition even in background noise
• Acoustic feedback via signals or voice output
• 30 languages ​​available
• Extensive configuration options such as time control, one-shot mode, UART commands

Scope of delivery

• SoC hardware for voice control including baseboard

• Voice control application vicCONTROL go
• PC software vicCONTROL Designer for Windows

• USB cable
• USB stick (drivers, documentation, software)
